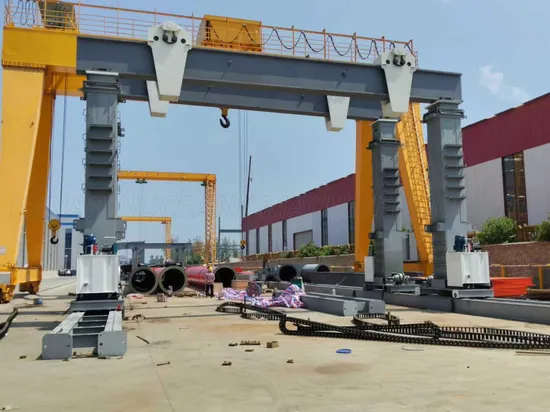

800ton hydraulic gantry crane Hydraulic gantry cranes are mainly used in space limited and heavy lifting situations, such as the installation of large transformers, the installation of large ship propellers, and the transportation of large equipment in workshops.

Hydraulic gantry crane is a lifting equipment designed for moving large metallurgical, electrical equipment or other heavy components. The equipment can realize hydraulic jacking, drive walking, side movement of spreader, and three-dimensional attitude adjustment of goods.

It is mainly composed of a set of basic jacking units including jacking and walking functions. The jacking unit is equipped with a hydraulic pump station as a power source. It adopts centralized electric control and relies on hydraulic drive to realize the jacking and walking of heavy objects.

The system is mainly composed of four groups of jacking unit, hydraulic station, The jacking unit has a carrying capacity of 10-300 tons per unit.

The lifting unit is placed on the walking track, supplied with oil by the hydraulic pump station, and adopts a closed-loop control method of continuously variable speed motor to achieve synchronous lifting and synchronous walking between the legs. .

Features and Advantages hydraulic pump station The hydraulic pump station adopts a centralized design, which means that four lifting units are equipped with one hydraulic station, and variable speed control is used to achieve speed control of lifting and walking, flexibly adapting to operational needs.The synchronization between the legs is achieved through a centralized control system.

lifting unit Using high-strength materials: The materials used in hydraulic gantry cranes are usually highly durable and strong, such as high-strength steel, etc. The application of these materials has significantly enhanced the lifting capacity of the crane.

Beam (main beam) and track The main beam and track is an important part of the hydraulic gantry crane, and it is also an essential part of the gantry crane work. The main beam mainly carries heavy loads and transfers the force to the lifting leg.

Track is an important factor to realize safe and stable running of gantry crane. You can't do one without the other. Lower deflection of main beam < 1/750. Anti-rust treatment should be done in the closed structure space of the track and main beam.

The main beam should be treated as a whole by shot blasting and quickly painted after shot blasting. The thickness of the paint film should be ≥120um. Gantry crane has C5 coating for corrosion protection and the panel has canopy / cover for rain and sun protection.

Distribution of carrying wheels: The carrying wheels of the hydraulic gantry crane are distributed along a long track. This arrangement enables the weight of the heavy object to be spread across multiple support points, reducing the pressure on each support point and thereby enhancing the overall carrying capacity.

Electrical control system The oil cylinder is driven step by step The lifting point is driven by a hydraulic motor The electrical system is controlled by PLC, and the hydraulic station is variable speed regulation.

Each leg is equipped with lift height sensors that provide real-time feedback on the current height and operation synchronization.

When there is a difference, the control system can automatically adjust the oil supply flow of each branch through variable adjustment, so as to achieve accurate synchronization between each branch.

The operator can also adjust and operate each independent leg separa Centralized control pump station can achieve remote control of the entire gantry crane system, which is safe, reliable, easy to operate, intuitive interface, and can monitor the movement of the load at any time.

Using hydraulic system: Hydraulic technology can move very heavy objects with very little force. This is based on Pascal
